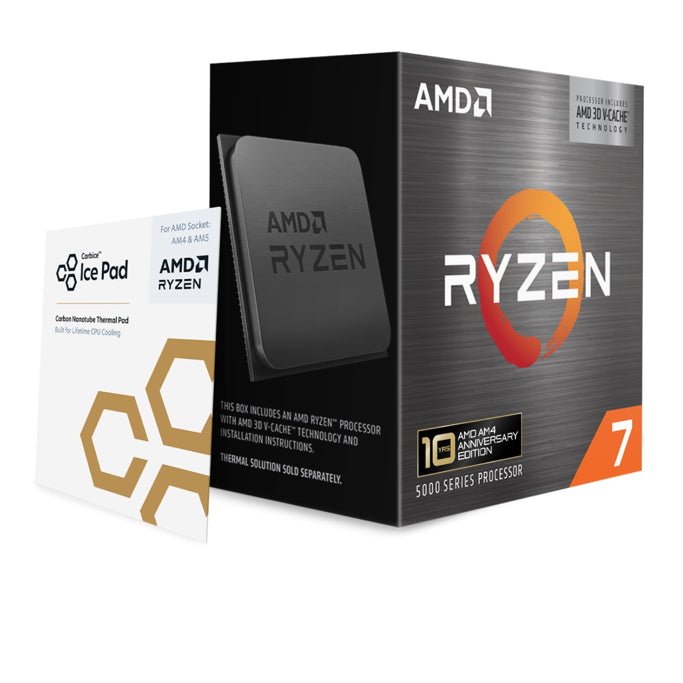

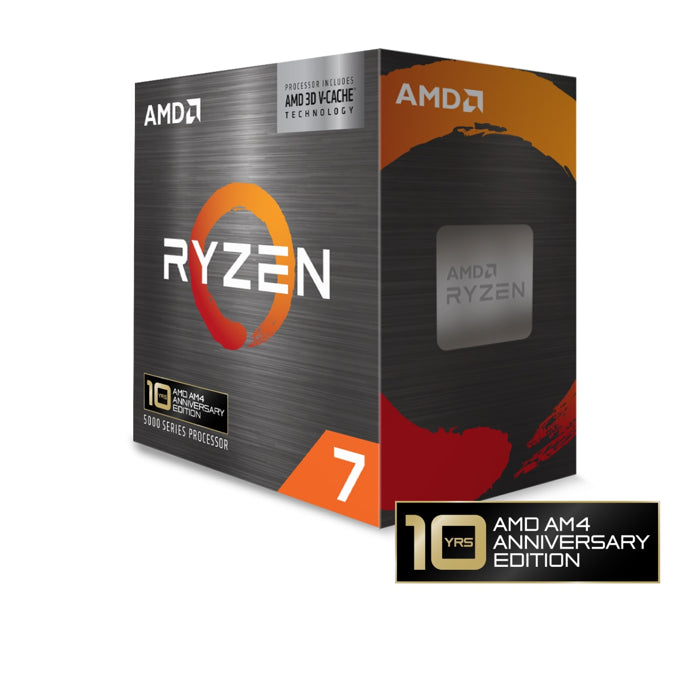

AMD Ryzen 7 5800X3D BOX 10th anniv, AM4

Name AMD Ryzen™ 7 5800X3D
Family Ryzen
Series Ryzen 5000 Series
Form Factor Desktops , Boxed Processor
Market Segment Enthusiast Desktop
Regional Availability Global , China , NA , EMEA , APJ , LATAM
Former Codename Vermeer
Processor Architecture Zen 3
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 4.5 GHz
Base Clock 3.4 GHz
L1 Cache 512 KB
L2 Cache 4 MB
L3 Cache 96 MB
Default TDP 105W
Processor Technology for CPU Cores TSMC 7nm FinFET
Processor Technology for I/O Die 12nm (Globalfoundries)
CPU Compute Die (CCD) Size 74mm2
I/O Die (IOD) Size 125mm2
Package Die Count 2
CPU Socket AM4
Supporting Chipsets X570 , X470 , B550 , B450 , A520
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) Not Included
Recommended Cooler Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) 90°C
Launch Date 4/20/2022
OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) 4
Native USB 3.2 Gen 1 (5Gbps) 0
Native USB 2.0 (480Mbps) 0
Native SATA Ports 2
PCI Express® Version PCIe® 4.0
Native PCIe® Lanes (Total/Usable) 24 , 20
Additional Usable PCIe Lanes from Motherboard X570 16x Gen 4
Additional Usable PCIe Lanes from Motherboard X470 2x Gen 3, 8x Gen 2
NVMe Support Boot , RAID0 , RAID1 , RAID10
System Memory Type DDR4
Memory Channels 2
Max. Memory 128 GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R DDR4-3200
Max Memory Speed 2x2R DDR4-3200
Max Memory Speed 4x1R DDR4-2933
Max Memory Speed 4x2R DDR4-2667
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Graphics Model Discrete Graphics Card Required
