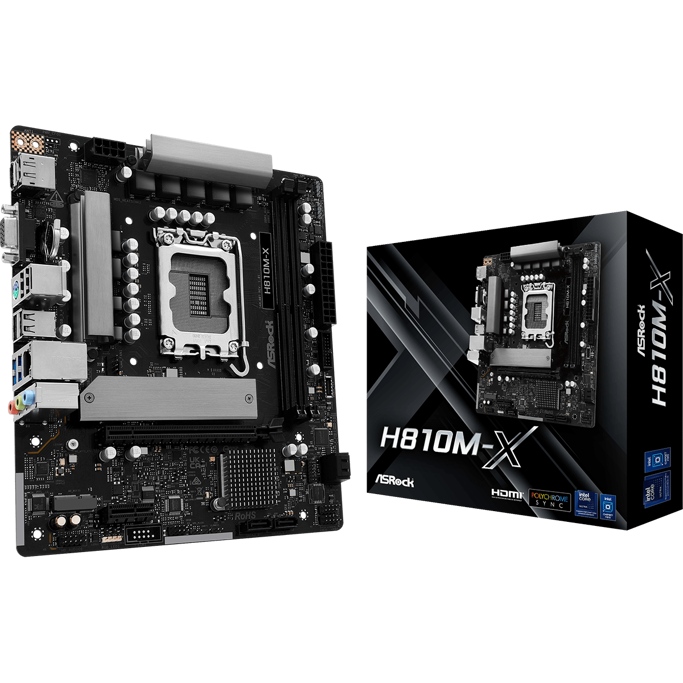

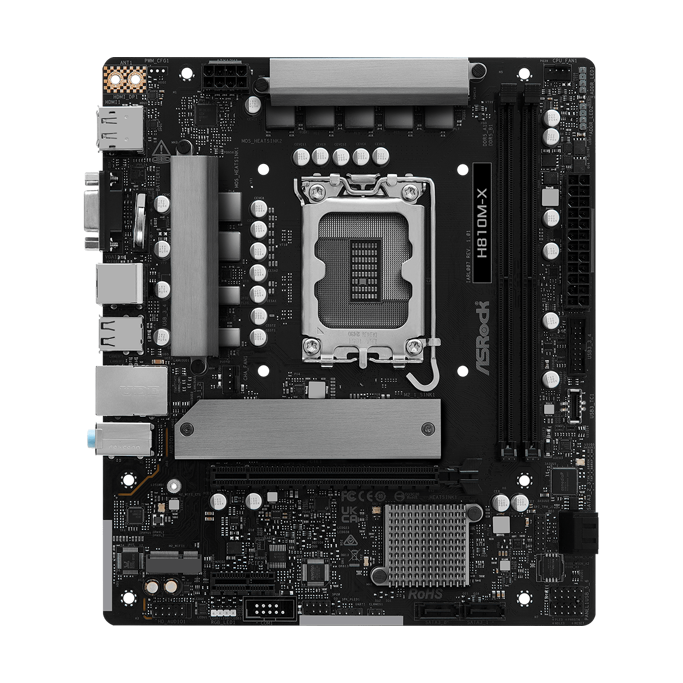

ASRock H810M-X, Intel H810, LGA 1851, DDR5, mATX, 90-MXBS4-A0UAYZ

Unique Feature
- Superb Productivity: Dual Channel DDR5
- Rock-Solid Durability: 6+1+1+1+1 Power Phase, ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
- Ultrafast Connectivity: 2.5G LAN
- EZ Update: ASRock Auto Driver Installer

CPU
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration

Chipset
- Intel® H810

Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6400*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 128GB*
- Supports Intel® Extreme Memory Profile (XMP) 3.0x*

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics
- Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC, supports HDCP 2.3, max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz*

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Slots
- CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- Chipset: 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
- Chipset: 1 x Hyper M.2 Socket (M2_1, Key M), PCIe Gen4x4 (64 Gb/s) mode*
- Chipset: 4 x SATA3 6.0 Gb/s Connectors

USB
- Chipset: 1 x USB 3.2 Gen1 Type-C (Front)
- Chipset: 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- Chipset: 6 x USB 2.0 (4 Rear, 2 Front)*

Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin, Smart Fan Speed Control)***
- 1 x Chassis Fan Connector (4-pin, Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

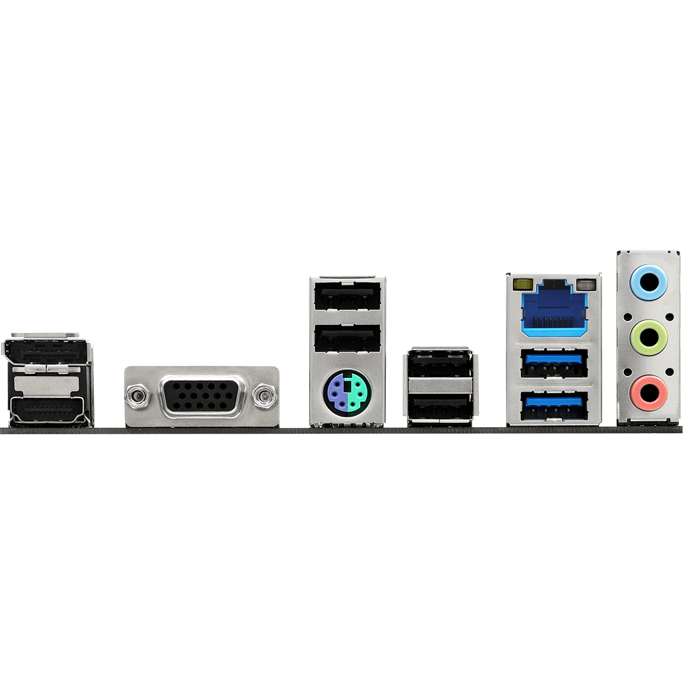

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*

UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Form Factor
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS
- Microsoft Windows® 11 64-bit

Certifications
- FCC, CE
- ErP/EuP ready (requires ErP/EuP PSU)
