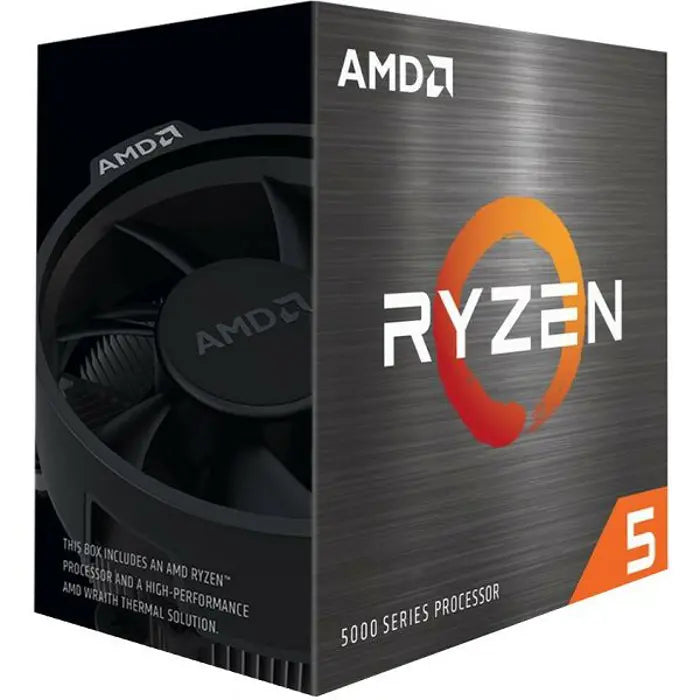

CPU AMD Ryzen 5 5600XT

Specifications:
Architecture Zen 3
# of CPU Cores 6
Multithreading (SMT) Yes
# of Threads 12
Max. Boost Clock Up to 4.7 GHz
Base Clock 3.7 GHz
L1 Cache 384 KB
L2 Cache 3 MB
L3 Cache 32 MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 7nm FinFET
Processor Technology for I/O Die 12nm (Globalfoundries)
CPU Compute Die (CCD) Size 74mm2
I/O Die (IOD) Size 125mm2
Package Die Count 2
Unlocked for Overclocking Yes
CPU Socket AM4
Supporting Chipsets X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) AMD Wraith Stealth
Max. Operating Temperature (Tjmax) 95°C
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 0
Native SATA Ports 2
PCI Express Version PCIe 4.0
Native PCIe Lanes (Total/Usable) 24 , 20
Additional Usable PCIe Lanes from Motherboard:
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support Boot , RAID0 , RAID1 , RAID10
System Memory Type DDR4
Memory Channels 2
Max. Memory 128 GB
System Memory Subtype UDIMM
System Memory Specification Up to 3200 MT/s
Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Graphics Model Discrete Graphics Card Required
