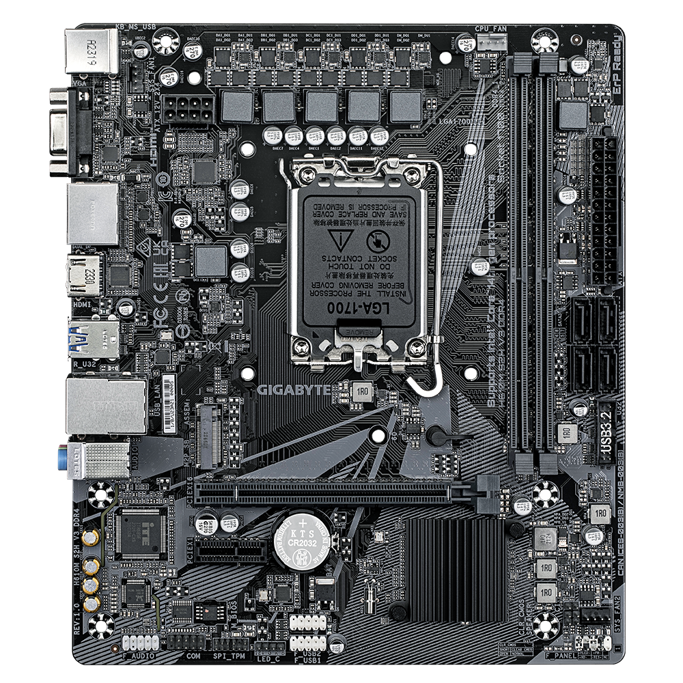

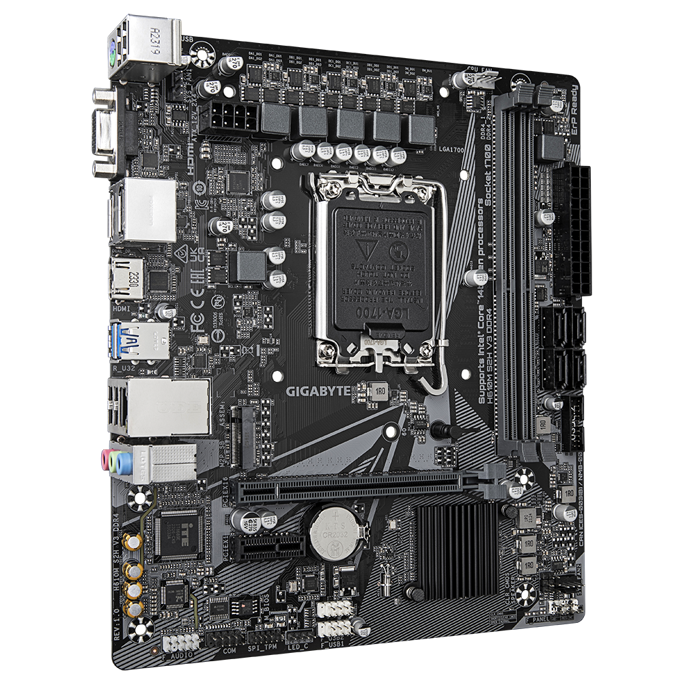

Gigabyte H610M S2H V3, Intel H610, LGA 1700, DDR4, mATX

Form factor
µATX
Plinth
Intel 1700 (LGA1700)
Chipset
Intel H610
CPU Compatibility
Celeron G6000, Pentium Gold G7000, Core i-12000, Core i-13000, Core i-14000
RAM slots
2x DDR4 DIMM, Dual Channel, UDIMM (Non-ECC), max. 64GB (UDIMM)
RAM Clock Speed Native
DDR4-3200 (Celeron G6000), DDR4-3200 (Pentium Gold G7000), DDR4-3200 (Core i-12000), DDR4-3200 (Core i-13000), DDR4-3200 (Core i-14000)
ECC Support
no

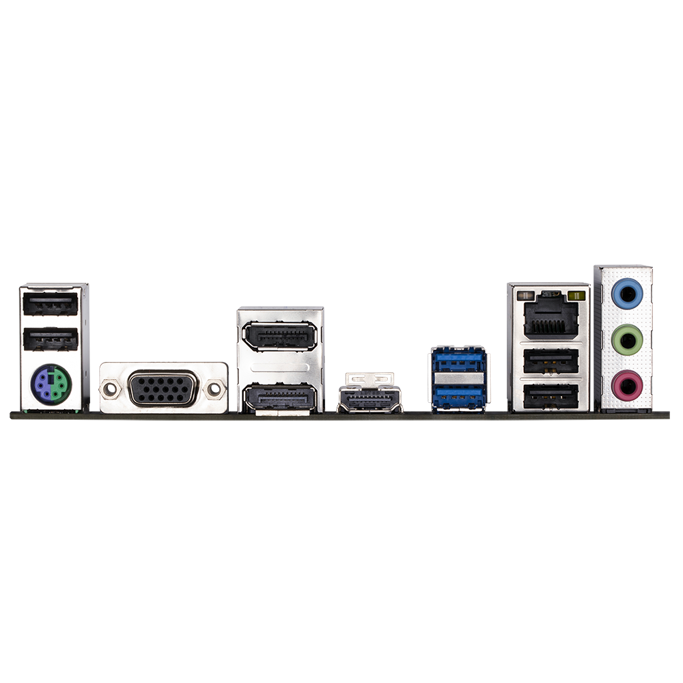

External connections
1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 2x DisplayPort 1.2 (iGPU), 2x USB-A 3.0 (5Gb/s, H610), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 LAN (1GBase-T, Realtek), 3x 3.5mm jack (Realtek ALC897), 1x PS/2 combo
PCIe slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x1
M.2 slots
1x M.2/M key (PCIe 3.0 x4, 2280/2260)
Other interfaces
4x SATA 6Gb/s (H610)
Internal Connections - USB
1x USB 3.0 header 20-pin (5Gb/s, 2x USB-A 3.0, H610), 2x USB 2.0 header 9-pin (480Mb/s, 4x USB-A 2.0)
Internal connections - other
1x serial header, 1x TPM header, 1x chassis intrusion header, 1x speaker header
Internal Connections - Cooling
1x CPU fan 4-pin, 2x fan 4-pin
Internal Connections - Power Supply
1x 24-pin ATX, 1x 8-pin EPS12V
Internal connections - lighting
1x 4-Pin RGB (+12V/G/R/B, max. 3A)
Audio
Realtek ALC897
Graphic
iGPU
Wireless
N/A
RAID Level
0/1/5/10 (H610)
VRM Design
4+1+1, 5 virtual CPU phases (4+1)
MOSFETs VCORE
4x 50A
MOSFETs SOC/VCCGT
1x 50A
