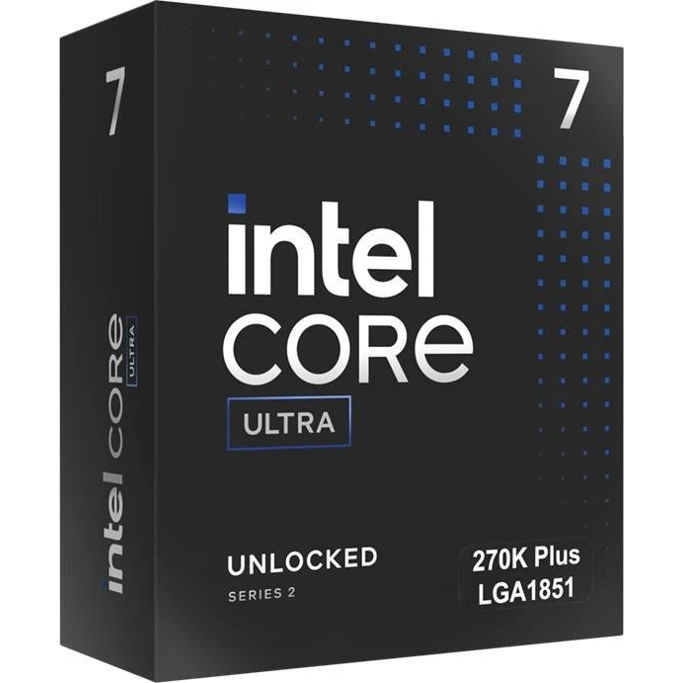

Intel Core Ultra 7 270K Plus, BOX, 3.7GHz, 36MB, 125W, LGA1851, BX80768270KSA4V6

Total Cores 24
# of Performance-cores 8
# of Efficient-cores 16
# of Low Power Efficient-cores 0
Total Threads 24
Max Turbo Frequency 5.5 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.5 GHz
Performance-core Max Turbo Frequency 5.4 GHz
Efficient-core Max Turbo Frequency 4.7 GHz
Performance-core Base Frequency 3.7 GHz
Efficient-core Base Frequency 3.2 GHz
Cache 36 MB Intel® Smart Cache
Total L2 Cache 40 MB
Processor Base Power 125 W
Maximum Turbo Power 250 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography TSMC N3B

Memory Specifications
Max Memory Size (dependent on memory type) 256 GB
Memory Types Up To DDR5 7200 MT/s
Max # of Memory Channels 2
ECC Memory Supported ‡ Yes

GPU Specifications
GPU Name‡ Intel® Graphics
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 2 GHz
GPU Peak TOPS (Int8) 8
Graphics Output eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores 4
Max Resolution (HDMI)‡
4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)
7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)‡
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡
3840 x 2400 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
H.264 Hardware Encode/Decode Yes
H.265 (HEVC) Hardware Encode/Decode Yes
AV1 Encode/Decode Yes
Intel® Quick Sync Video Yes
# of Displays Supported ‡ 4
Device ID 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes
AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications
NPU Name‡ Intel® AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Intel® Thunderbolt™ 4 Yes
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max # of PCI Express Lanes 24

Package Specifications
Sockets Supported FCLGA1851
Thermal Solution Specification PCG 2020A
Max Operating Temperature 105 °C
Package Size 45 mm x 37.5 mm
