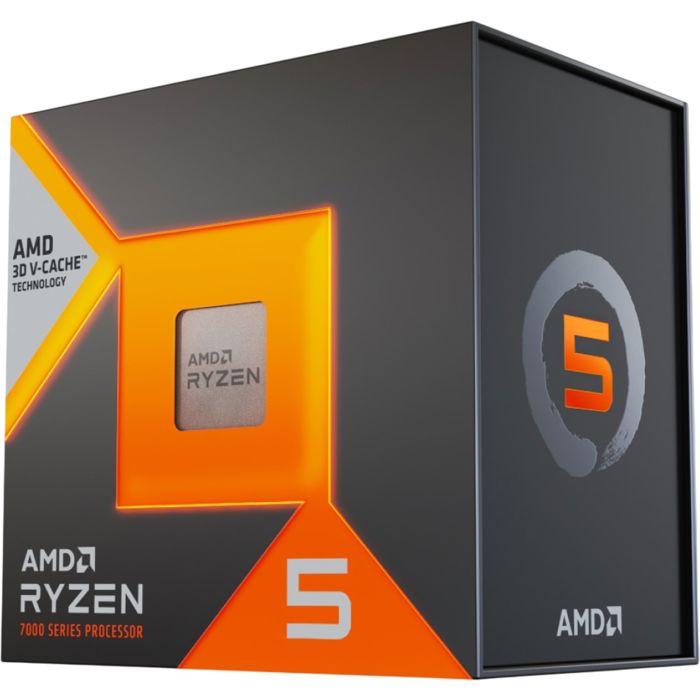

Procesor AMD Ryzen 5 7500X3D

Name AMD Ryzen™ 5 7500X3D
Family Ryzen
Series Ryzen 7000 Series
Form Factor Desktops, BOXed Processor
Market Segment Enthusiast Desktop
AMD PRO Technologies No
Regional Availability NA , EMEA
Former Codename Raphael AM5
Processor Architecture Zen 4
# of CPU Cores 6
Multithreading SMT Yes
# of Threads 12
Max. Boost Clock Up to 4.5 GHz
Base Clock 4 GHz
L1 Cache 384 KB
L2 Cache 6 MB
L3 Cache 96 MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die CCD Size 71mm2
I/O Die IOD Size 122mm2
Package Die Count 2
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution PIB Not Included
Recommended Cooler Liquid cooler recommended for optimal performance
Max. Operating Temperature Tjmax 89°C
Launch Date 11/12/2025
*OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity
Native USB 3.2 Gen 2 10Gbps 4
Native USB 3.2 Gen 1 5Gbps 0
Native USB 2.0 480Mbps 1
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes Total/Usable 28 , 24
NVMe Support Boot , RAID0 , RAID1 , RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128 GB
System Memory Subtype UDIMM
Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support Yes Requires mobo support

Graphics Capabilities
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes

Key Features
AMD EXPO™ Technology , AMD Ryzen™ Technologies
